Reduzierstück Außendurchmesser 610,0 - DIN 2616
Alle Angaben ohne Gewähr

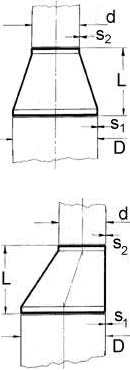

eccentric acc. to DIN 2616 Pt. 1
concentric acc. to DIN 2616 Pt. 2
Made from seamless tubes DIN 2448 of carbon steel St 35.8 I acc. to DIN 17175
wallthicknesses of 3 mm and thicker: with bevelled ends acc. to DIN 2559 form 22
| Rohr-Ø D (mm) | Rohr-Ø d (mm) | Wandstärke s1 (mm) | Wandstärke s2 (mm) | Länge | Toleranz +/- mm | Gewicht ca. kg | |
|---|---|---|---|---|---|---|---|
| konzentr. ca. mm | exzentr. ca. mm | ||||||
| 610,0 | 323,9 | 12,5 | 7,1 | 508 | - | 6,0 | 93/124 |
| 610,0 | 355,6 | 12,5 | 8 | 508 | 675 | 6,0 | 93/124 |
| 610,0 | 368 | 12,5 | 8 | 508 | 675 | 6,0 | 93/124 |
| 610,0 | 406,4 | 12,5 | 8,8 | 508 | 575 | 6,0 | 93/105 |
| 610,0 | 419 | 12,5 | 10 | 508 | 575 | 6,0 | 93/105 |
| 610,0 | 457,2 | 12,5 | 10 | 508 | 490 | 6,0 | 93/ 90 |
| 610,0 | 508 | 12,5 | 11 | 508 | 350 | 6,0 | 93/ 64 |
| 610,0 | 521 | 12,5 | 11,5 | 508 | 350 | 6,0 | 93/ 64 |
Datenblatt
